Elite Twin Lock Hydraulic Quick Hitch for U25-3 Excavators

Details & Specs

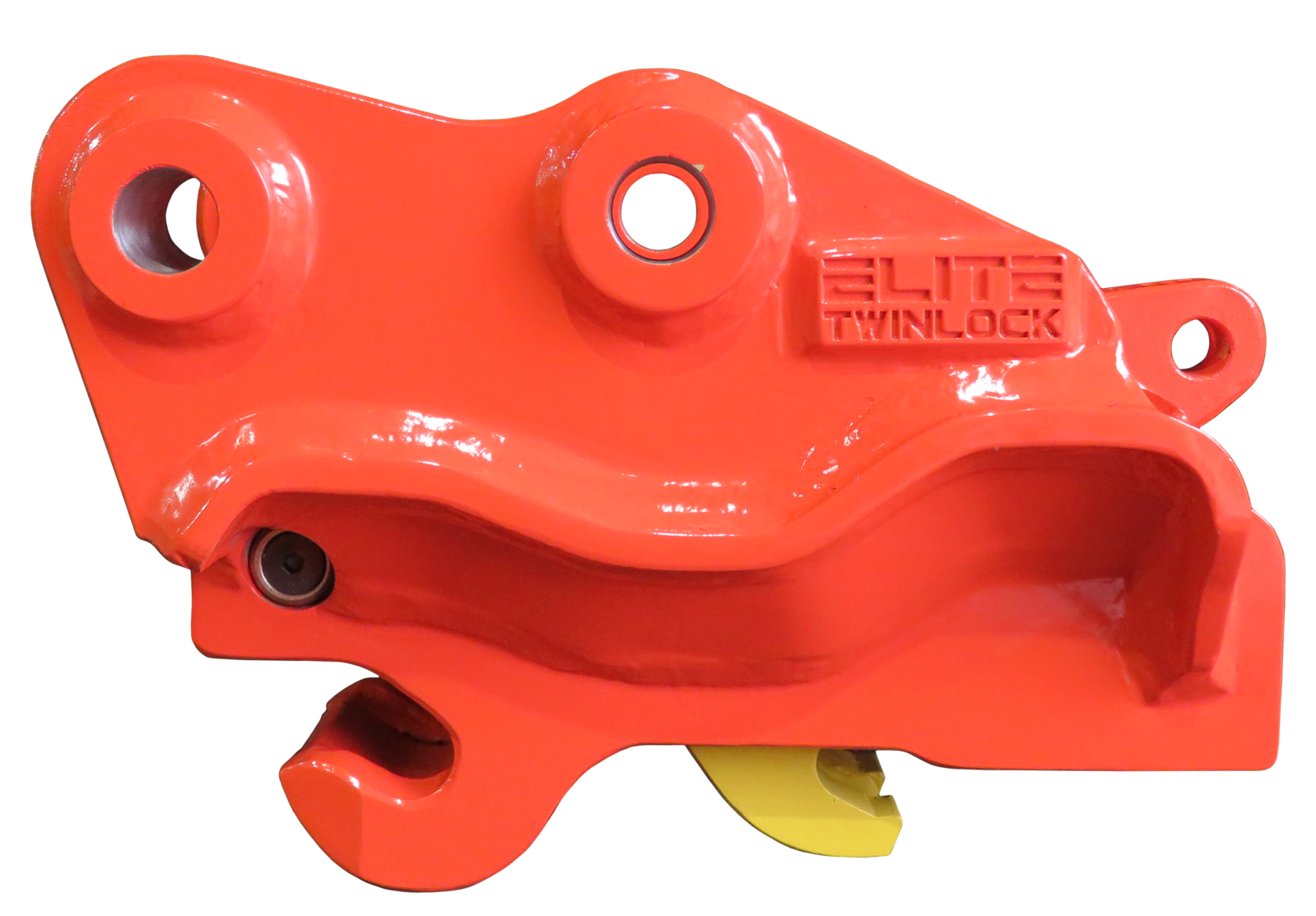

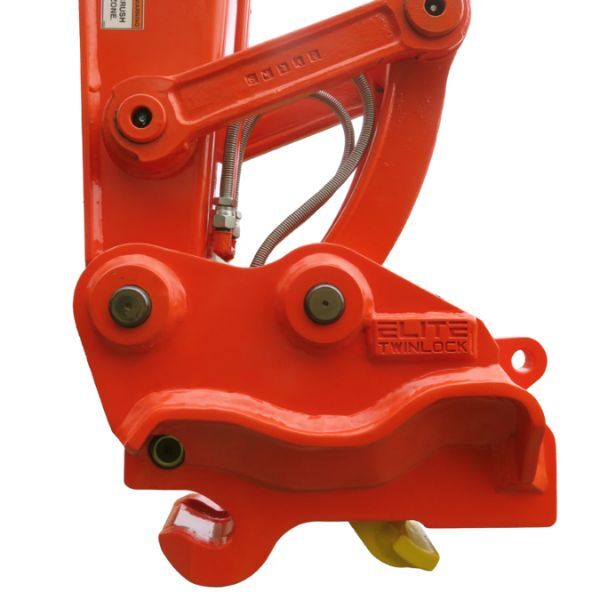

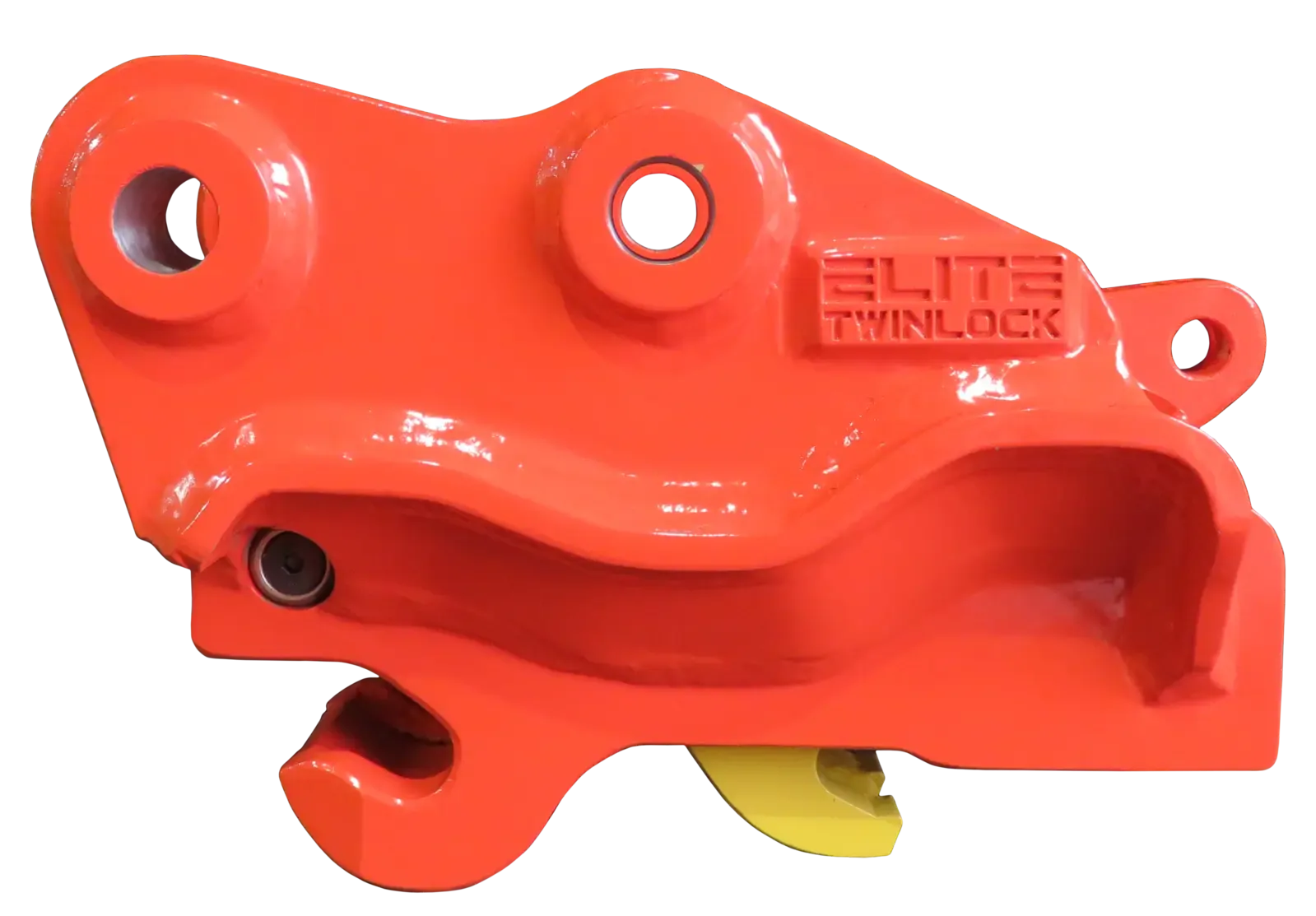

Elite Twin Lock - Hydraulic Quick Hitch - Suits Kubota 2.5 Tonne U25-3 Excavator

With over 30 years' experience in the industry has allowed Elite Attachments to gain unparallel experience and insight in developing automatic quick hitches. The hydraulically operated Elite TwinLock is impressive in its simplicity and efficiency. Minimal components and a tough fabricated body allow for superior performance, reliability and longevity in the field. The patented TwinLock mechanism enables simultaneous locking on both attachment pins at all times, for added workplate safety and compliance.

Please note price is for Elite TwinLock Hitch supply only, installation is not included.

Compliant with Australian (AS4772-2008) and international (ISO 13031-2012) Hydraulic Hitch Standards
Specifically designed for the Kubota U25-3 excavator
Fully automatic operation with no manual safety pin required
Twin Locking Hitch with independent locking on the front and rear attachment pins
Simple construction with only 3 main parts: body, slide, and cylinder
Fitted with an integral steel plate lifting eye
OEM coloured to match machine colour

Specifications

Brand: Elite Attachments
Model: EL20TL-30-KUB
Construction: Built from 800 MPa high-strength steel plate
Includes: Precision ground greasable pins
Lifting Eye: Integral and certified
Warranty: 12 months from the date of installation
Optional Hose & Piping Kit:

Hitch can be supplied with a hose & piping kit designed and tested specifically for your machine
Custom Designed - To the exact specifications of your excavator
Quick Fit-up - Existing mount points are used to reduce fit-up times
Durable - Hosing is protected inside the bucket linkage and fitted with HD plastic spiral wrap
OEM Coloured - Painted to match the original Kubota Orange colour

Further Options Avaliable:
