Auger Torque Earthdrill X2500 + 300mm Auger Tractor Package
Earthdrill:
- Model: Earthdrill X2500
- Includes 1.8 Mtr hydraulic hoses fitted with 1/2″ ISO or Flush Face Couplers
- Euro Frame & Cradle
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- 100% Designed and Australian Made
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 70 -240 bar
- Torque range: 830 -2,847 Nm
- Oil Flow Range: 27 - 65 lpm
- Speed range: 36-87 rpm
- Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
- Unit weight: 48kg (Not including Frame or Hitch)
Auger Specifications
- Model: S4
- 300mm / 12" Diameter
- 1200mm Overall Length
- Double Cut boring head
- Flight Thickness - 6mm
- 65mm round hub (Industry Standard)
- Teeth fitted:Earth
- Teeth Style: Shock Loch™ Tooth Locking system
Further Options Available:
- Complete range of S4 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
- S4 Spec Augers fitted with Rock Teeth & Rock Pilots
- Extensions & Telescopic Extensions from 500mm to 1500mm
- Clean out discs / Hole Cleaners
- Please Inquire if you have any further questions
Machine Suitability:

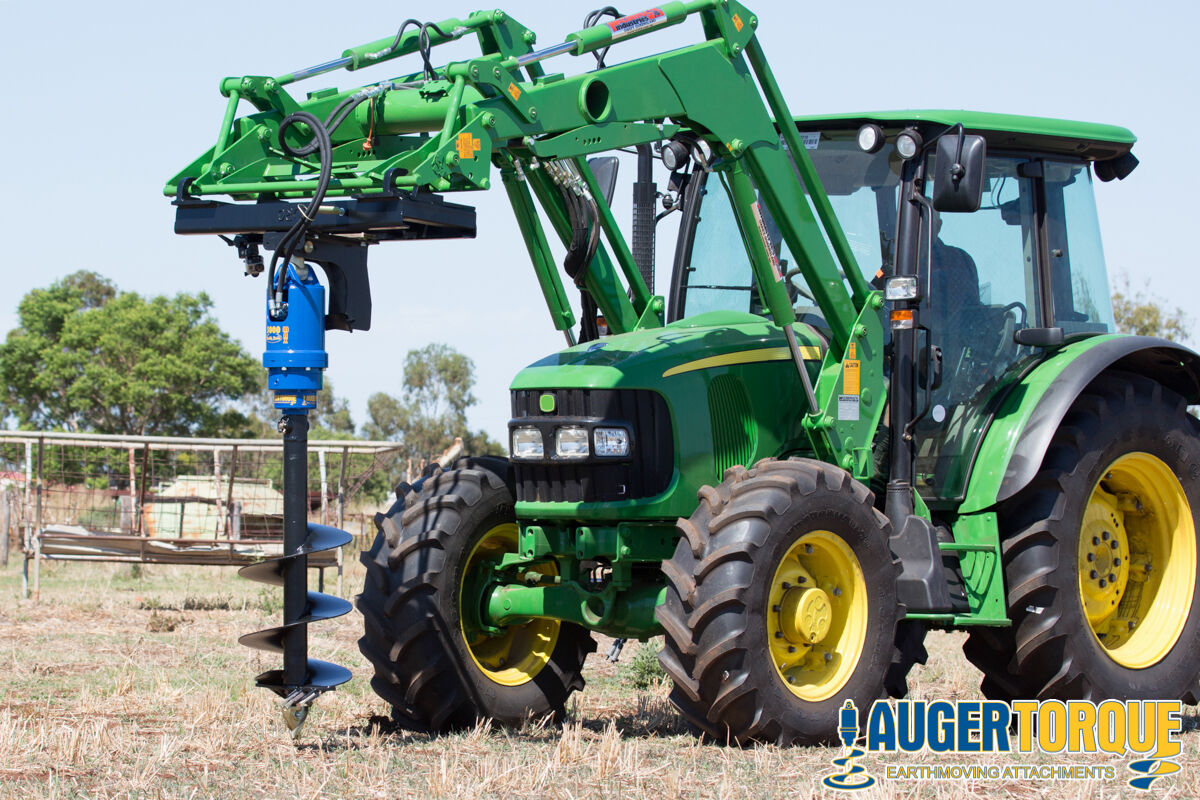

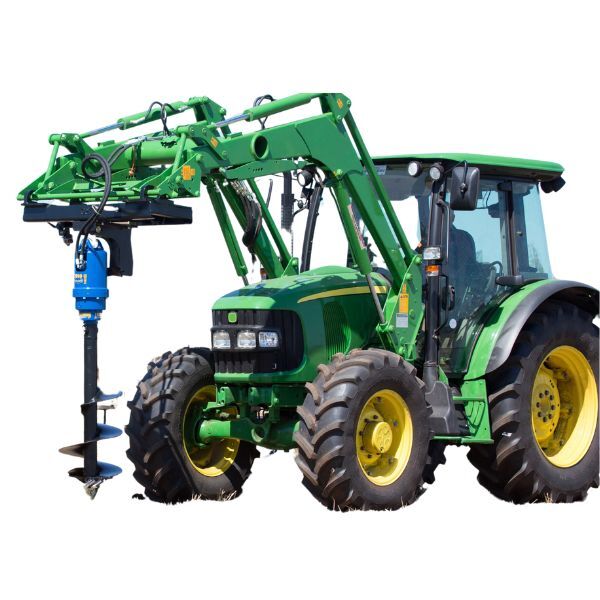

Tractors with Front End Loaders / Euro pickup
Also available on Excavators, Skid Steer Loaders, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Please note, that any location with a house is considered a residential property, including farms and businesses
Please dont hesitate to contact us if you have any further questions or queries.
