Auger Torque - Earthdrill X2000 + S4 300mm + 450mm Auger Package

Details & Specs

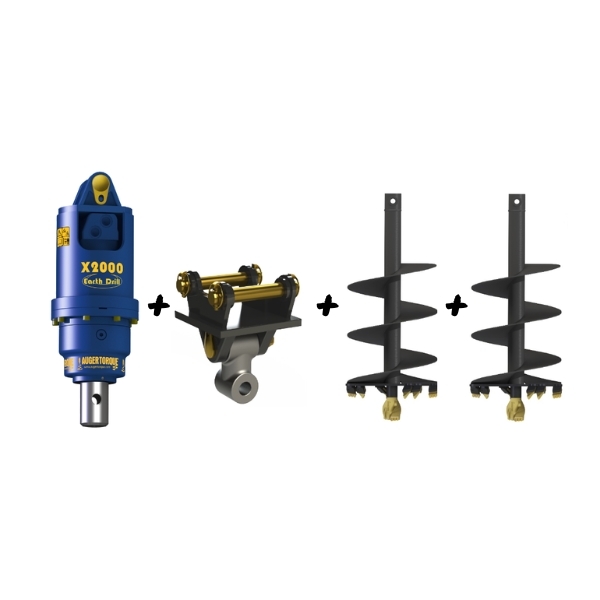

Auger Torque Earthdrill X2000 + Double Pin Hitch + 300mm + 450mm Auger Package

Earthdrill:

Model: Earthdrill X2000
Includes a Double Pin Hitch (25mm/30mm Pins) to suit an excavator (Up to 2.5 Tonne)
1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Earthdrill/Auger Drive Specifications & Requirements:

Oil Pressure Range: 70 -240 bar
Torque range: 639 -2,190 Nm
Oil Flow Range: 25 - 57 lpm
Speed range: 43-99 rpm
Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
Unit weight: 47kg (Not including Frame or Hitch)

Auger Specifications:

Model: S4 Spec - 300mm & 450mm
Teeth: Shock Lock™ – Tungsten (Top of the range)
Hub: Standard 65mm Round (Full range of shaft sizes upon request)
6mm Flights
Double Cut boring head
1200mm Overall length
Uses patented Shock Lock™ Tooth Locking system

Further Options Available:

Complete range of S4 Spec Augers sizes from 4″/100 mm up to 36″ 900 mm in Diameter
S4 Spec Augers fitted with Rock Teeth & Rock Pilots
Extensions & Telescopic Extensions from 500mm to 1500mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

Available on Skid Steer Loader, Track Loaders, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.

Please note, that any location with a house is considered a residential property, including farms and businesses

Please don't hesitate to contact us if you have any further questions or queries

Specifications

SKU	EARTHDRILLX2000-S4-300450
Brand	Auger Torque
Shipping Weight	120.0000kg
Shipping Width	1.130m
Shipping Height	0.660m
Shipping Length	0.660m
Shipping Cubic	0.492228000m3
Unit Of Measure	ea
