Auger Torque - Earthdrill 8000MAX

Details & Specs

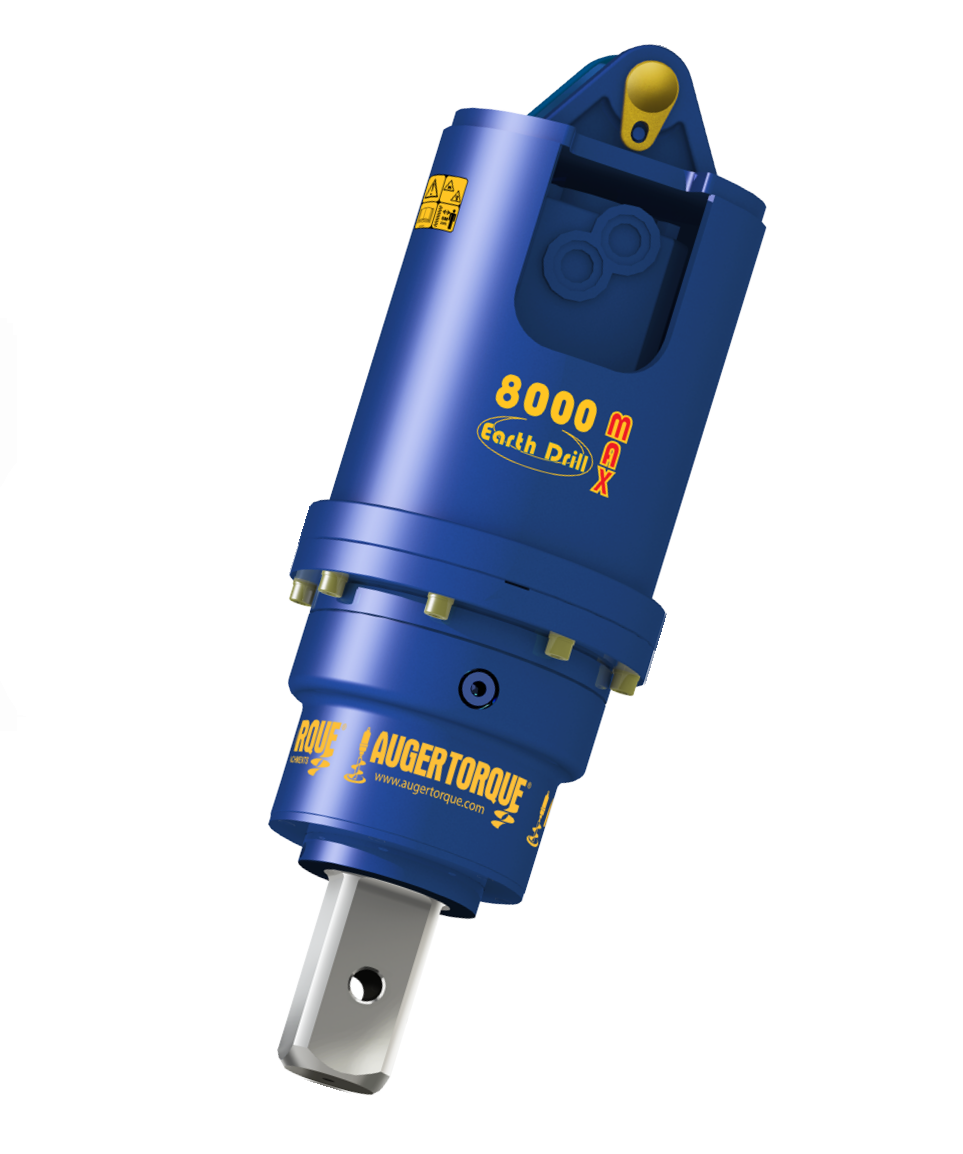

Auger Torque Earthdrill 8000MAX

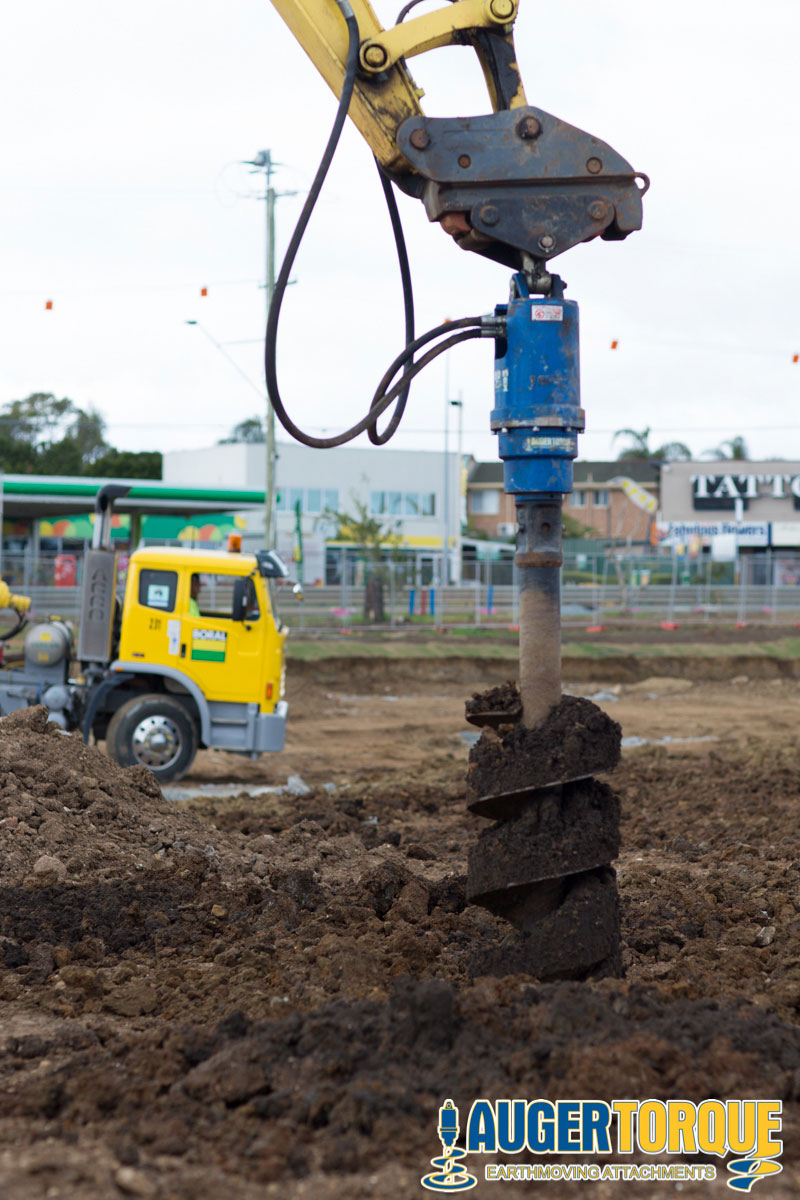

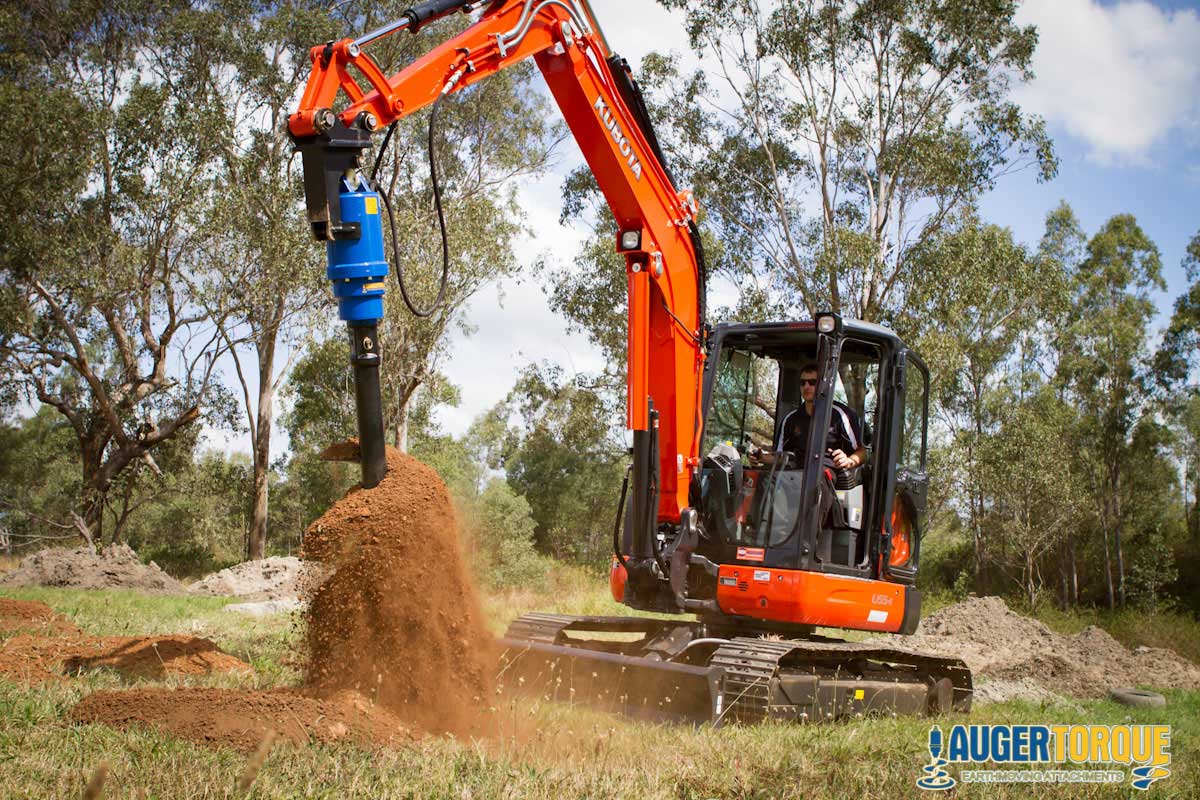

The Auger Torque Earthdrill 8000MAX is an auger drive designed for use with excavator skid and track loaders ranging from 5.0 to 8.0 tonnes.

Also available on Tractors, Telehandlers & Front End loaders Please enquire if you have any further questions about your machine suitability.

Please note that:

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Any location with a house is considered a residential property, including farms and businesses.

Suitable for excavators 5.0 to 8.0 Tonne
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty: 6-Year Gearbox, 3-Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Brand: Auger Torque
Model: 8000MAX
Includes 1.8 Mtr hydraulic hoses fitted with 1/2? Flush Face or ISO Couplers
Oil Pressure Range: 80 -240 bar
Torque range: 2,717 - 8,152 Nm
Oil Flow Range: 70 - 150 lpm
Speed range: 33-70 rpm
Hub Options: 75mm Square (Standard)
Unit weight: 116kg (Not including Frame or Hitch)

Further Options:

Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Hitch will be custom manufactured to suit the parent machine Please allow 2-3 days for build time
Skid Steer Frame / Skid Steer Side Shift Frame

Further Options Available:

Complete range of S5 Spec Augers sizes from 4?/100 mm up to 36? 900 mm in Diameter
S5 Spec Augers fitted with Rock Teeth & Rock Pilots
Extensions & Telescopic Extensions from 500mm to 1500mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

SKU	EARTHDRILL8000MAX
Brand	Auger Torque
Shipping Weight	150.0000kg
Shipping Width	1.130m
Shipping Height	0.660m
Shipping Length	0.660m
Shipping Cubic	0.492228000m3
Unit Of Measure	ea
