Auger Torque - Earthdrill 4500MAX - For Skid Steer & Excavator

Details & Specs

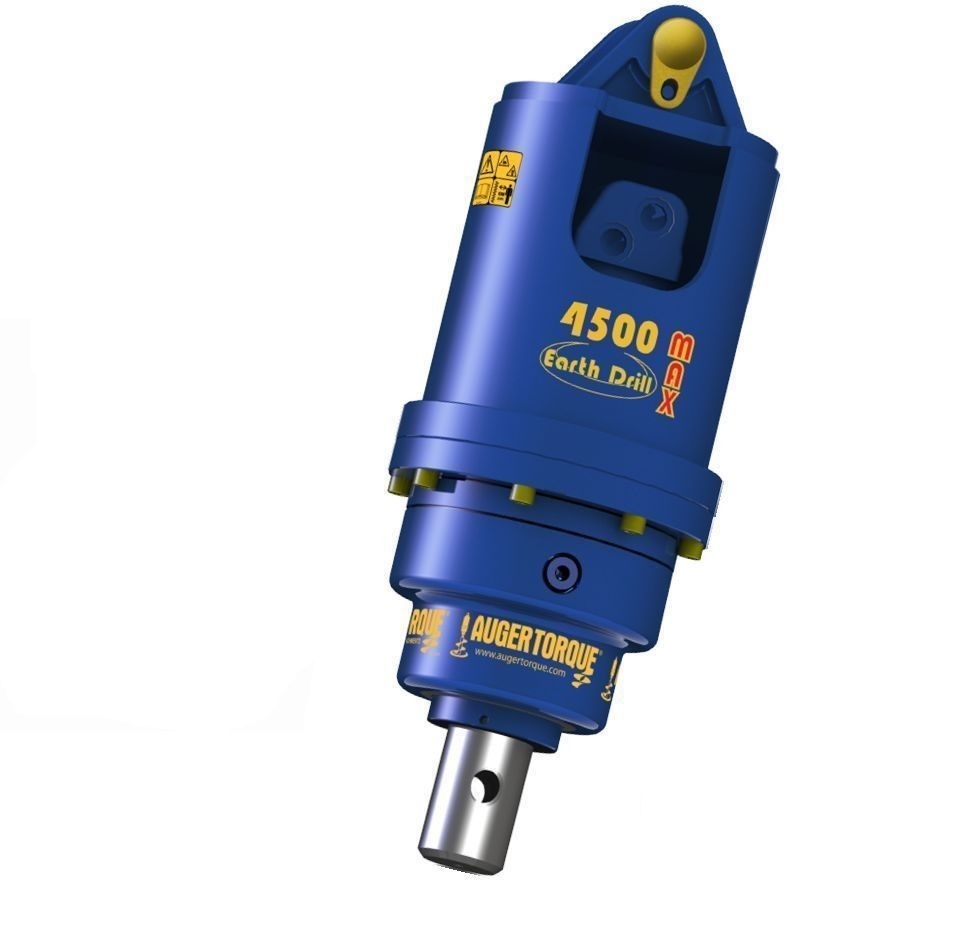

Auger Torque Earthdrill 4500MAX

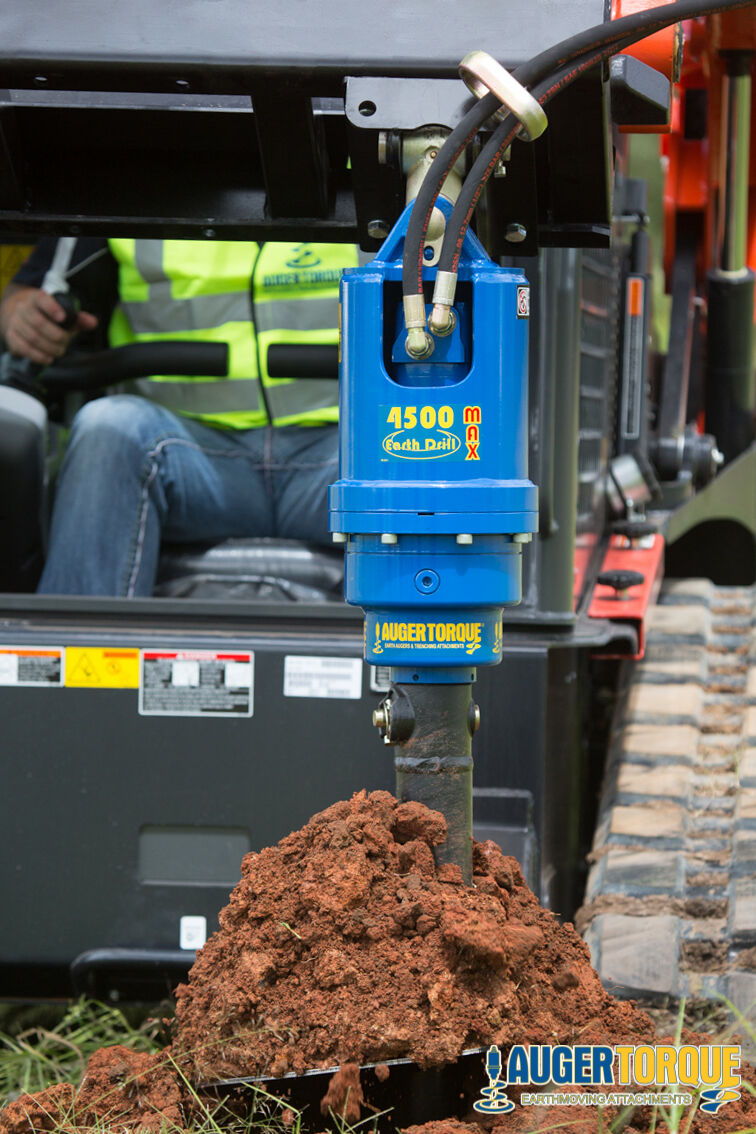

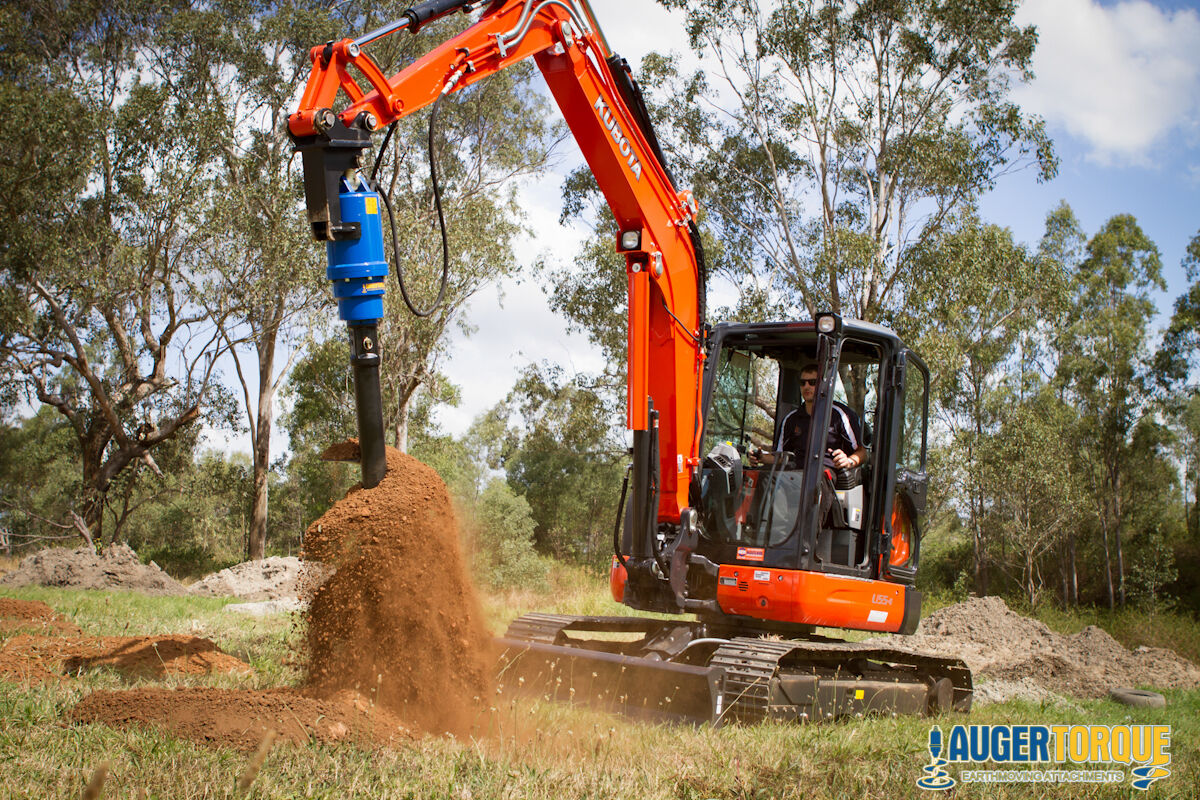

The Auger Torque Earthdrill 4500MAX is an auger drive designed for use with excavator skid and track loaders ranging from 3.0 to 5.0 tonnes.

Please note that:

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Any location with a house is considered a residential property, including farms and businesses.

Suitable for excavators up to 4.5 Tonne
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty: 6-Year Gearbox, 3-Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Brand: Auger Torque
Model: 4500MAX
Includes 1.8 Mtr hydraulic hoses fitted with 1/2? Flush Face or ISO Couplers
Oil Pressure Range: 80 -240 bar
Torque range: 1,500 -4,499 Nm
Oil Flow Range: 50 - 95 lpm
Speed range: 43-81 rpm
Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
Unit weight: 75kg (Not including Frame or Hitch)

Further Options:

Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Hitch will be custom manufactured to suit the parent machine Please allow 2-3 days for build time
Skid Steer Frame / Skid Steer Side Shift Frame

Further Options Available:

Complete range of S4 Spec Augers sizes from 4?/100 mm up to 36? 900 mm in Diameter
S4 Spec Augers fitted with Rock Teeth & Rock Pilots
Extensions & Telescopic Extensions from 500mm to 1500mm
Clean out discs / Hole Cleaners
Please Inquire if you have any further questions

SKU	EARTHDRILL4500MAX
Brand	Auger Torque
Shipping Weight	144.0000kg
Shipping Width	1.130m
Shipping Height	0.660m
Shipping Length	0.660m
Shipping Cubic	0.492228000m3
Unit Of Measure	ea
