AUGER TORQUE PACKAGE - 4500 MAX EARTHDRILL + HITCH + S2 300MM AUGER EXCAVATOR

Details & Specs

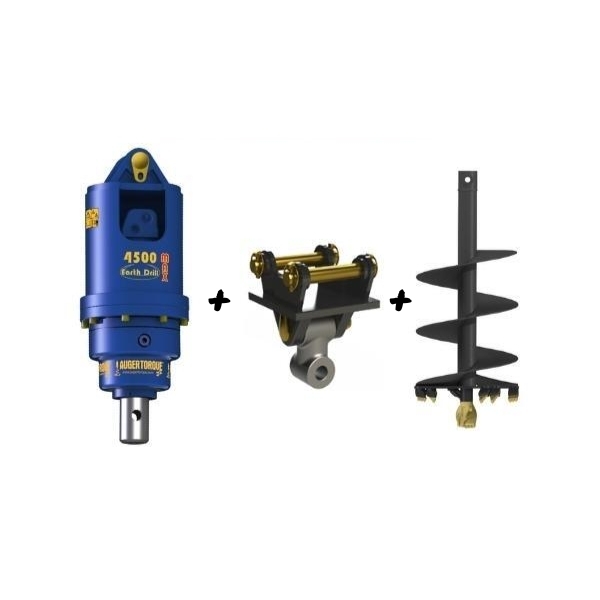

Auger Torque Earthdrill 4500MAX + Hitch + 300mm Auger Package

The Auger Torque auger package includes the Earthdrill 4500MAX auger drive, a double pin hitch, and an S4 300mm auger, suitable for excavators ranging from 3.5 to 5.5 tonnes.

Also available on Skid Steers, Tractors, Telehandlers & Front End loaders Please enquire if you have any further questions about your machine suitability.

Please note that:

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.
Any location with a house is considered a residential property, including farms and businesses.

Suits Excavators - 3.5 to 5.5 Tonne
Hitch will be custom manufactured to suit the parent machine Please allow 2-3 days for build time
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty: 6-Year Gearbox, 3-Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Specifications

Brand: Auger Torque
Earthdrill/Auger Drive Specifications & Requirements:

Model: 4500MAX
Includes Double Pin Hitch (45mm Pins) to suit an excavator (Up to 5.5 Tonne)
1.8 Mtr hydraulic hoses fitted with 1/2? Flush Face or ISO Couplers
Oil Pressure Range: 80 -240 bar
Torque range: 1,500 -4,499 Nm
Oil Flow Range: 50 - 95 lpm
Speed range: 43-81 rpm
Hub Options: 65mm Round (Standard) - 2" Hex & 57mm Square also available upon request
Unit weight: 75kg (Not including Frame or Hitch)

Auger Specifications:

Model: S4 Spec - 300mm
Teeth: Shock Lock Tungsten (Top of the range)
Hub: Standard 65mm Round (Full range of shaft sizes upon request)
6mm Flights
Double Cut boring head
1200mm Overall length
Uses patented Shock Lock Tooth Locking system

Further Options Available:

Complete range of S4 Spec Augers sizes from 4?/100 mm up to 36? 900 mm in Diameter

SKU	EARTHDRILL4500MAX-S4-300
Brand	Auger Torque
Shipping Weight	84.0000kg
Shipping Width	1.000m
Shipping Height	0.580m
Shipping Length	1.000m
Shipping Cubic	0.580000000m3
Unit Of Measure	ea
