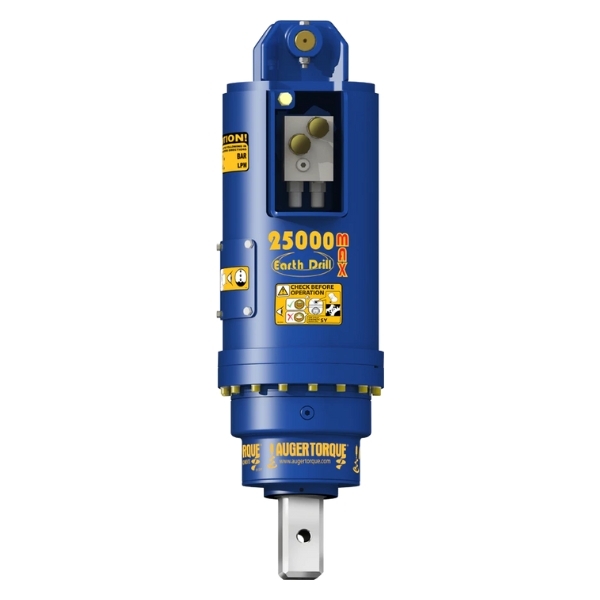

Auger Torque Earthdrill 25000MAX
Earthdrill:
- Model: 25000MAX
- Includes 1.8 Mtr hydraulic hoses fitted with Flush Face or ISO Couplers
- Suitable for excavators 12.0 to 22.0 Tonne
- Unique Non-Dislodgement shaft
- Planetary gearbox
- Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
- European designed and manufactured to industry standard ISO 9001
Earthdrill/Auger Drive Specifications & Requirements:
- Oil Pressure Range: 160- 240bar
- Torque range: 16,503 - 24755 Nm
- Oil Flow Range: 80 - 170 lpm
- Speed range: 12-26 rpm
- Hub: 75mm Square (Standard)
- Unit weight: 269kg (Not including Frame or Hitch)
Further Options
- Double Pin Hitch
- Cradle Hitch
- Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time
Further Options Available:
- Complete range of S6 Spec Augers sizes from 6″/150 mm up to 60″ 1500mm in Diameter
- S6 Spec Augers fitted with Rock Teeth & Rock Pilots
- Extensions & Telescopic Extensions from 1000mm to 3000mm
- Clean out discs / Hole Cleaners
- Please Inquire if you have any further questions
Also available on Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability)
