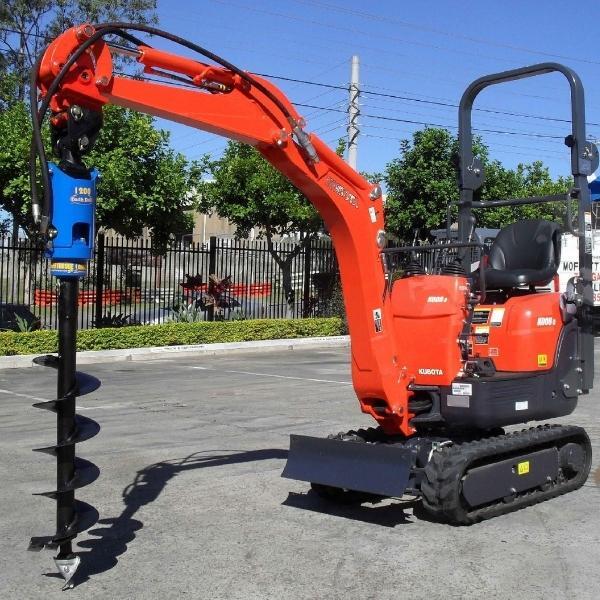

Auger Torque Earthdrill 1200 + S2 300mm Auger Package

Details & Specs

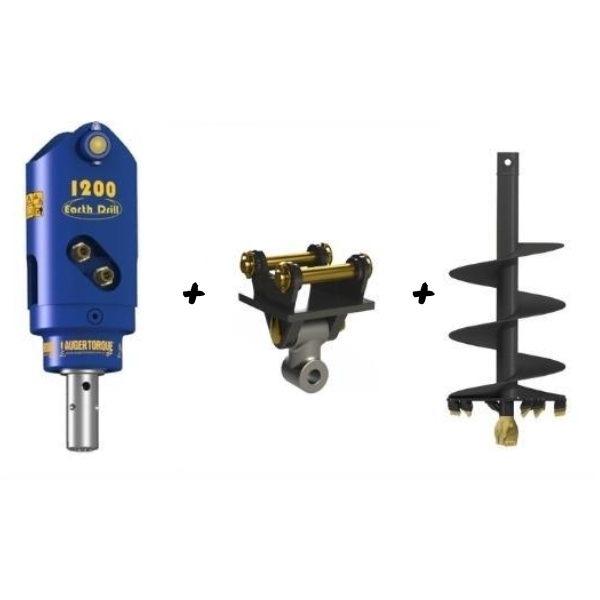

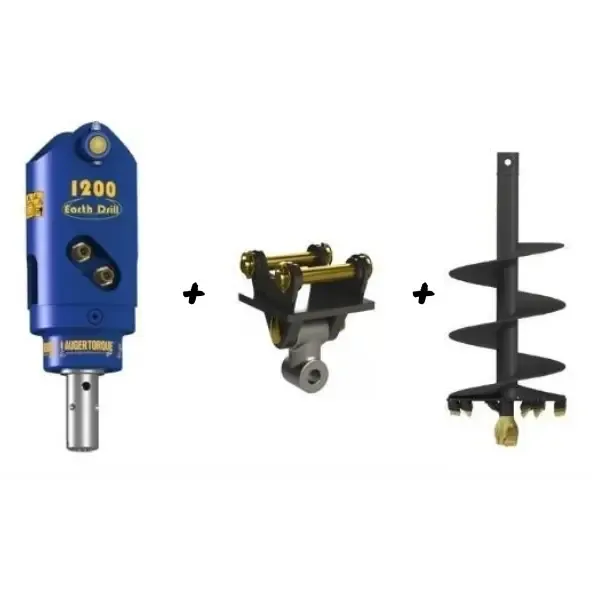

Auger Torque Earthdrill 1200 + Double Pin Hitch + 300mm Auger Package

Earthdrill:

Model: Earthdrill 1200
Includes Double Pin Hitch to suit an excavator (Up to 1.0 Tonne)
1.8 Mtr hydraulic hoses fitted with 1/2″ Flush Face or ISO Couplers
Hitch will be custom manufactured to suit the parent machine – Please allow 2-3 days for build time
Unique Non-Dislodgement shaft
Planetary gearbox
Warranty - 6 Year Gearbox & 3 Year Hydraulic Motor (Auger Torque provide a LIFETIME warranty on the dislodgement of the Earthdrill shaft)
European designed and manufactured to industry standard ISO 9001

Earthdrill/Auger Drive Specifications & Requirements:

Oil Pressure Range: 30 -185 bar
Torque range: 189 -1,164 Nm
Oil Flow Range: 15 - 32 lpm
Speed range: 38-81 rpm
Hub Options: 50mm Round (Standard)
Unit weight: 35kg (Not including Hitch)

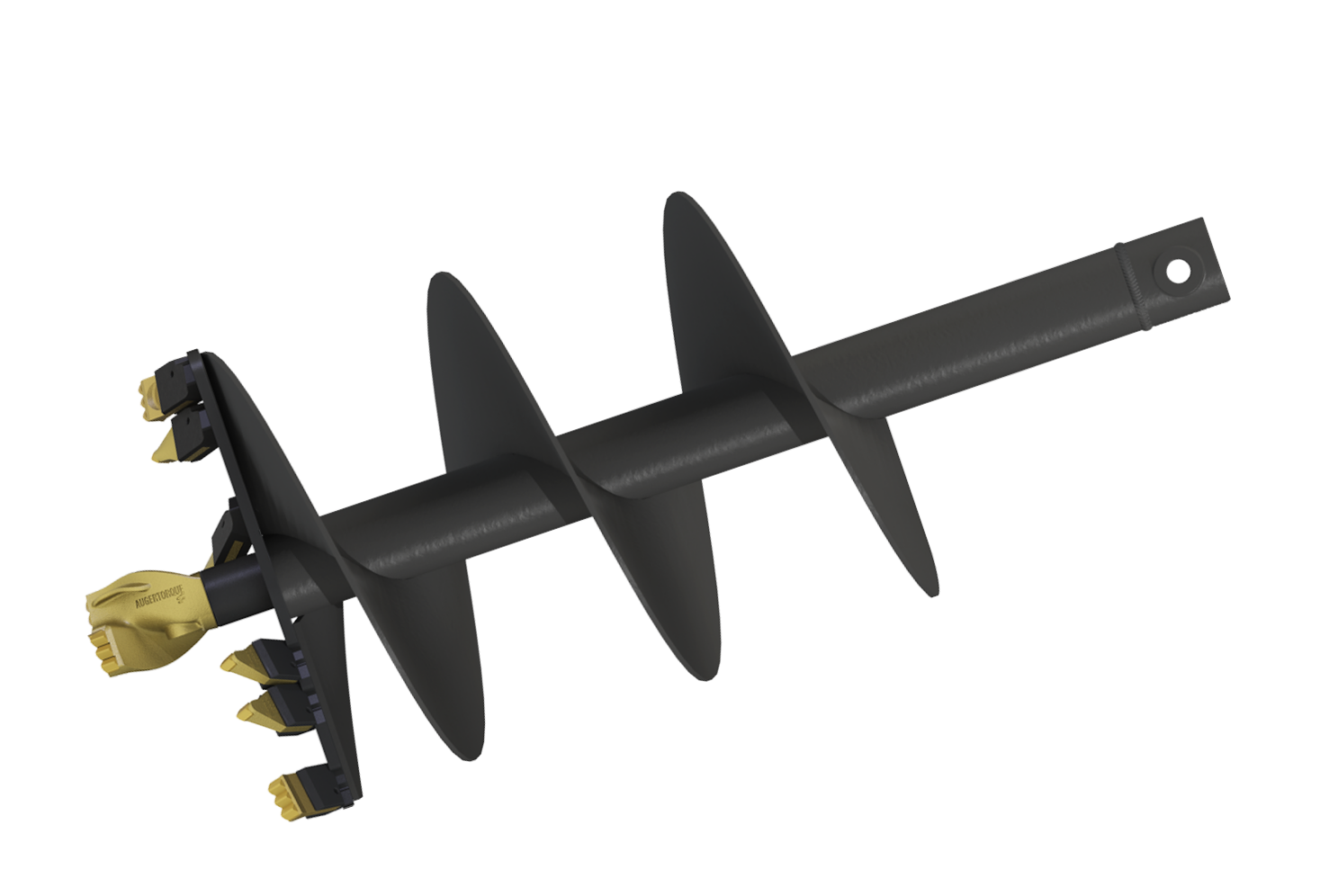

Auger Specifications:

Model: S2 Spec - 300mm
Teeth: Shock Lock™ – Flat Tungsten
Hub: Standard 50mm Round (Full range of shaft sizes upon request)
6mm Flights
Double Cut boring head
900mm Overall length
Uses patented Shock Lock™ Tooth Locking system

Further Options Available:

Complete range of S2 Spec Augers sizes from 4″/100 mm up to 12″ 300 mm in Diameter

Also available on Skid Steers, Tractors, Telehandlers & Front End loaders – Please enquire if you have any further questions about your machine suitability

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities.

Please note, that any location with a house is considered a residential property, including farms and businesses

Please dont hesitate to contact us if you have any further questions or queries.

Specifications

SKU	EARTHDRILL1200-S2-300
Brand	Auger Torque
Shipping Weight	85.0000kg
Shipping Width	1.200m
Shipping Height	0.600m
Shipping Length	1.200m
Shipping Cubic	0.864000000m3
Unit Of Measure	ea
