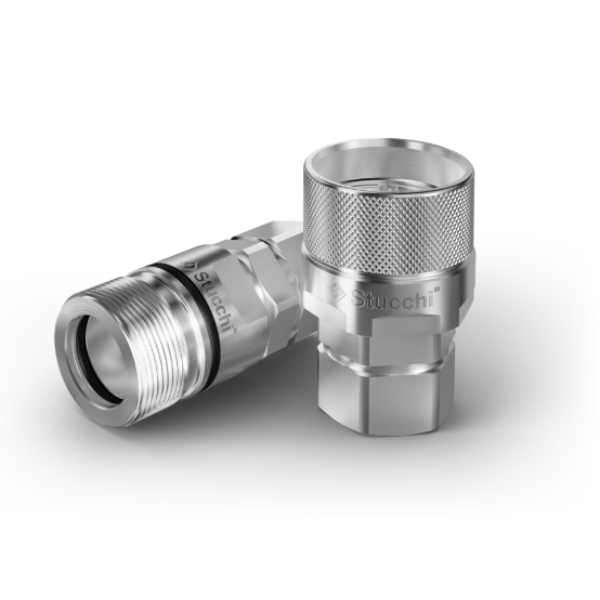

1 x Set of Genuine Stucchi ½" Male & Female Hydraulic Couplings (Made in Italy)
The Stucchi VD series is a screw to connect coupling with poppet style valving. Made in high strength steel with zinc plating and NBR sealing, they are interchangeable with similar couplings existing on the market. The VD series are suitable for application with pressure impulses in the hydraulic circuit on excavators, skid steer & track loaders, machinery attachments and all types of construction & agricultural equipment.
These couplings are used by most major OEM brands and compatible with major brands like Parker, Faster, Eaton & Hansen and much more...
Package Includes
1 x M-VD12 BSP - ½" Male VD Coupling (½" BSP Female Threaded Connection)
1 x F-VD12 BSP - ½" Female VD Coupling (½" BSP Female Threaded Connection)
Specifications:
- ½" BSP Female Threaded Connection
- Flow rate: up to 378 LPM
- Operating Temperature: -20 to 100 Degrees
- Operating Pressure: Up to 450 bar
- Industry standard couplings conform to ISO 14541

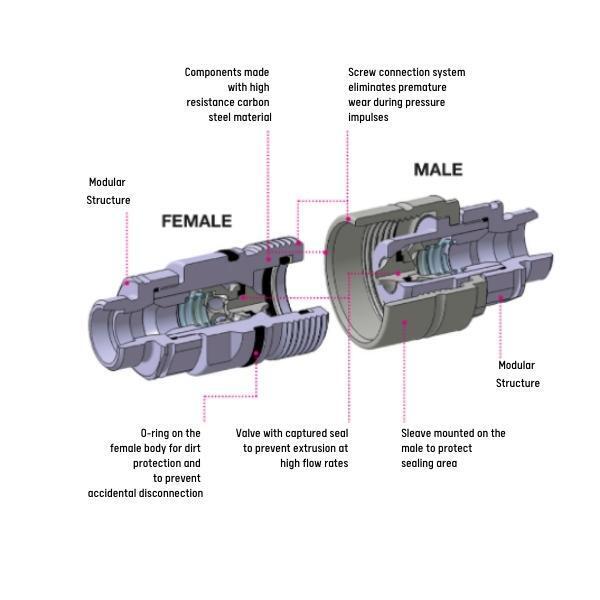

Features:
- Flat Face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
- Minimal fluid spillage during connection & disconnection
- Minimal air intrusion during connection
- Locking sleave prevents accidental disconnection and damage
Please enquire if you have any further questions about your suitability
Please don't hesitate to contact us if you have any further questions or queries
