Stucchi 3/8 Flat Face Couplings 1/2" BSP Thread

Details & Specs

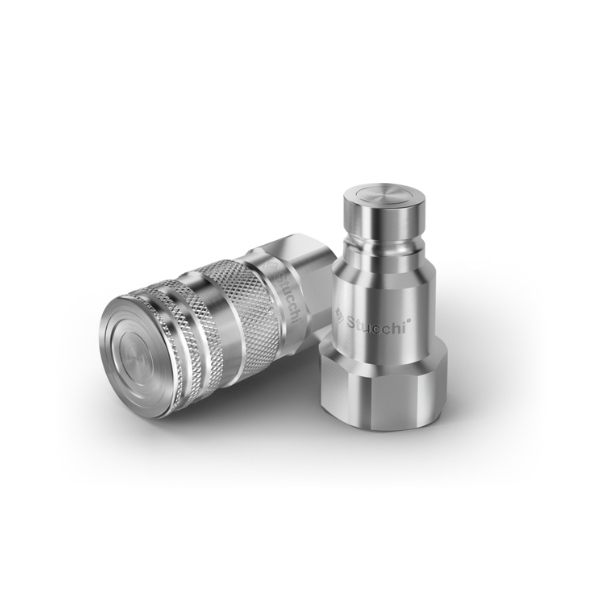

1 x Set of Genuine 3/8 Stucchi Flat Face Couplings, with 1/2" BSP Thread - Made in Italy

The Stucchi FIRG series of high performance Flat Face couplings are designed for use on auxiliary circuits on excavators, skid steer & track loaders, machinery attachments and all types of construction & agricultural equipment.

These couplings are used by most major OEM brands and compatible with major brands like Parker, Faster, Eaton & Hansen and much more...

Package Includes:

1 x M-FIRG9- 3/8" Male Flat Face Coupling (½" BSP Female Threaded Connection)

1 x F-FIRG9- 3/8" Female Flat Face Coupling (½" BSP Female Threaded Connection)

Specifications:

½" BSP Female Threaded Connection
Flow rate: 24-1000 LPM
Operating Temperature: -20 to 100 Degrees
Operating Pressure: Up to 330 bar
Industry Standard Couplings Conform to ISO 16028

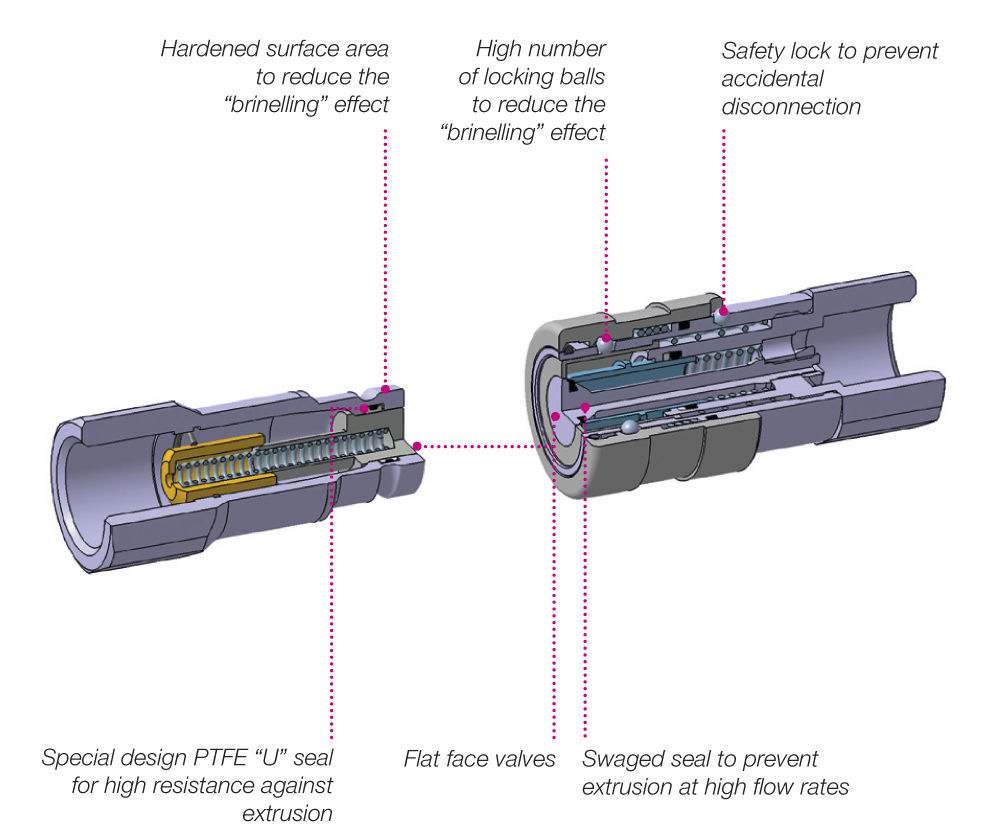

Features:

Flat Face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
Minimal fluid spillage during connection & disconnection
Minimal air intrusion during connection
Locking sleave prevents accidental disconnection and damage

Please don't hesitate to contact us if you have any further questions or queries

Specifications

SKU	M-FIRG912BSP-F-FIRG912BSP
Brand	Stucchi
Shipping Weight	1.0000kg
Shipping Width	0.220m
Shipping Height	0.070m
Shipping Length	0.160m
Shipping Cubic	0.002464000m3
Unit Of Measure	ea
