Silvan Pump Pressure Regulator Kit

Details & Specs

Silvan Pressure Regulator Kit

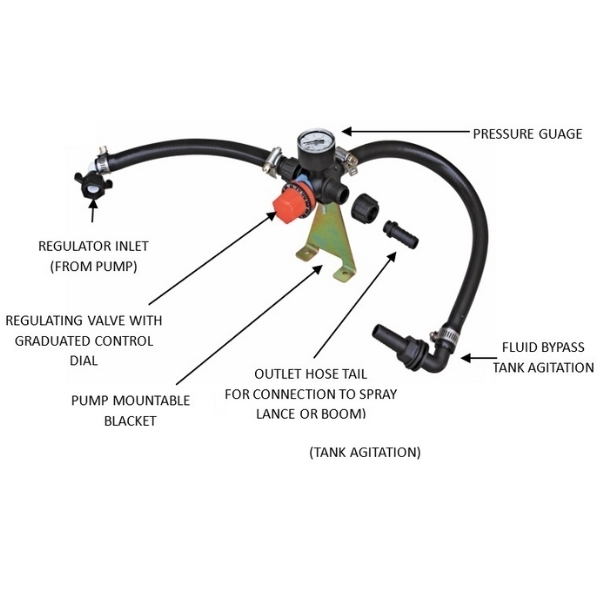

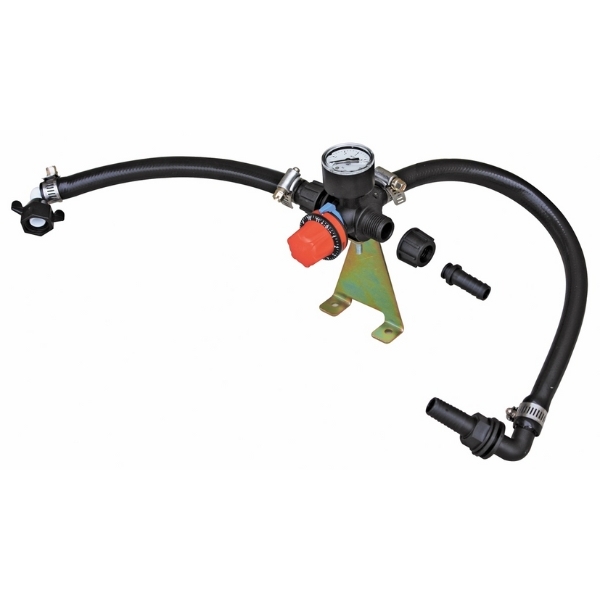

The RP1-24-4 pressure regulator is designed with a unique bracket for mounting to the base of common Smoothflo, Shurflo 800 and 2088 series pumps, this allows the kit to be used with complete spray units and stand alone pumps. The pump is fitted to the regulator via supplied short hose with a 1/2" elbow and fly nut.

The ideal accessory to allow the operator to adjust the pressure and flow from the pump, to achieve an accurate application rate, whether used in a spot spraying application through a spray gun or boom, and allowing excess flow back into the pump for agitation.

Key Features

Unique Mounting Bracket
Visible Pressure Guage
1/2" Male nipple on the outlet for attaching a spray line or fitting
Arag regulating valve
20L/min max flow under pressure
Adjustment via graduated dial

Please don't hesitate to contact us if you have any further questions or queries

Specifications

SKU	RP1-24-4
Brand	Silvan
Shipping Weight	3.0000kg
Shipping Width	0.320m
Shipping Height	0.160m
Shipping Length	0.240m
Shipping Cubic	0.012288000m3
