Elite TwinLOCK Hydraulic Quick Hitch For Kubota Excavator

Details & Specs

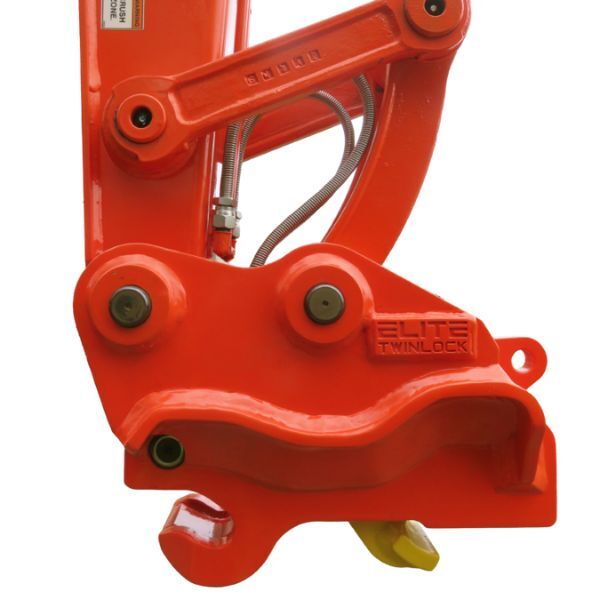

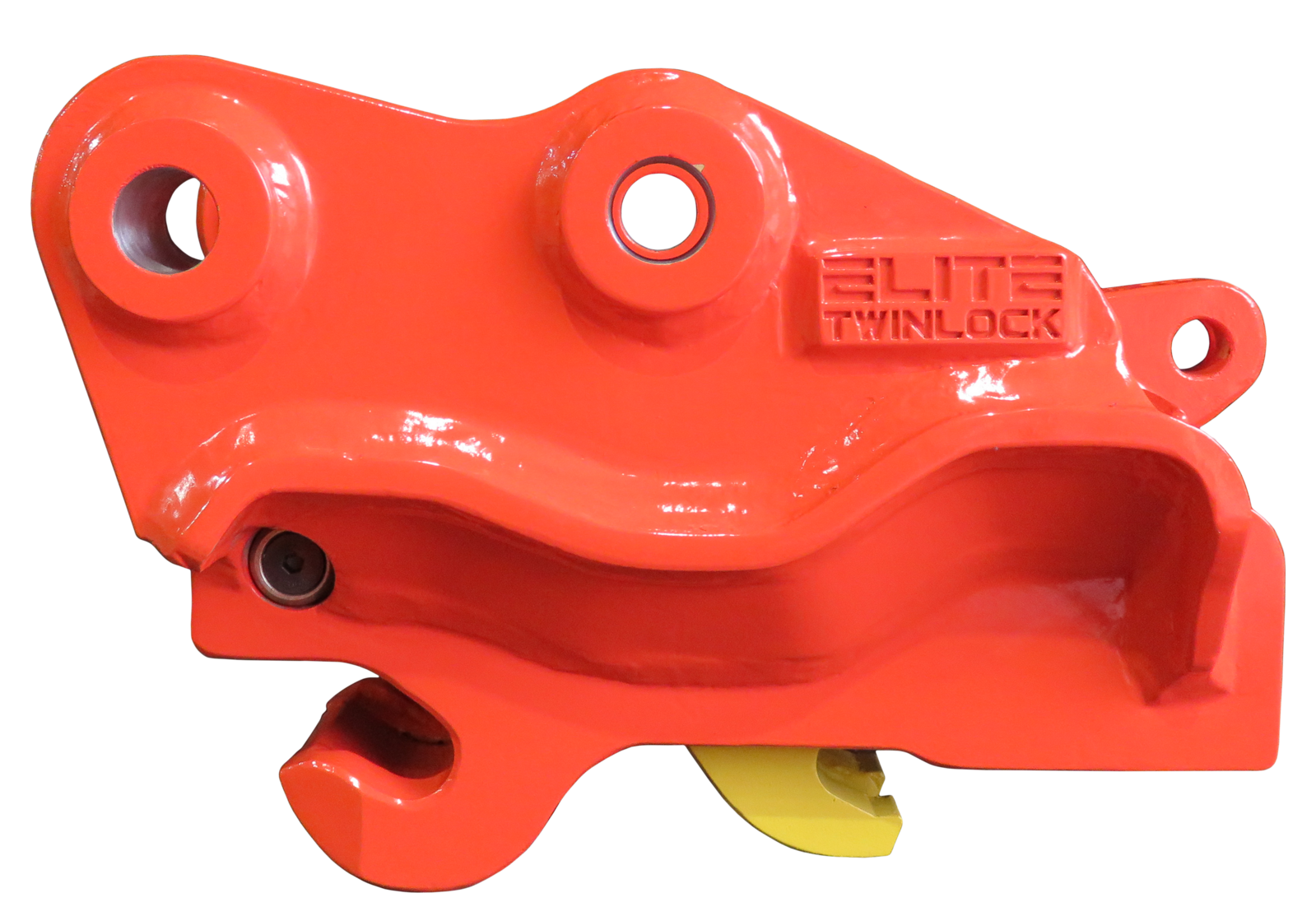

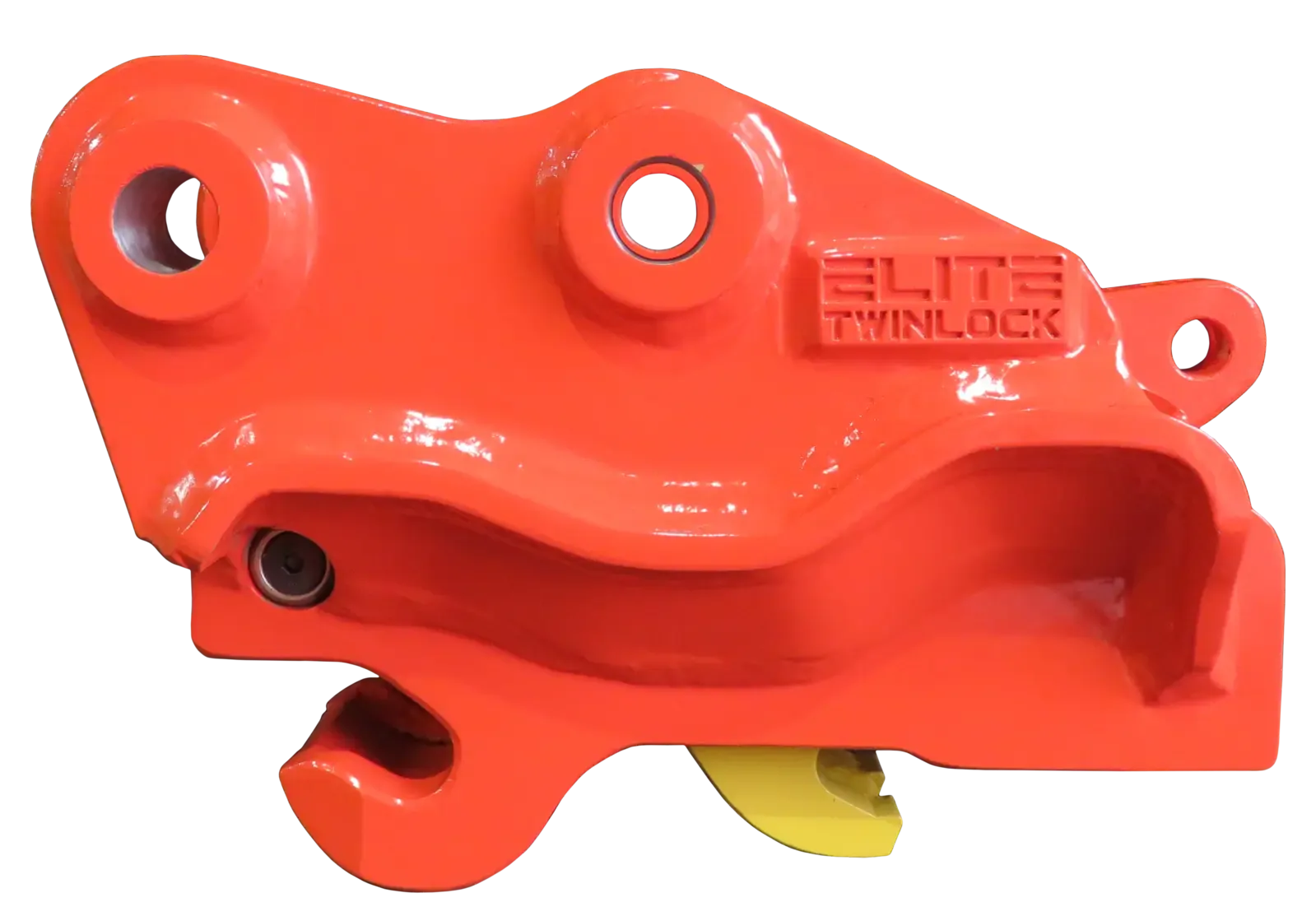

Elite Twin Lock - Hydraulic Quick Hitch - Suits Kubota 1.5 - 1.9 Tonne excavators

With over 30 years' experience in the industry has allowed Elite Attachments to gain unparallel experience and insight in developing automatic quick hitches. The hydraulically operated Elite TwinLock is impressive in its simplicity and efficiency. Minimal components and a tough fabricated body allow for superior performance, reliability and longevity in the field. The patented TwinLock mechanism enables simultaneous locking on both attachment pins at all times, for added workplate safety and compliance.

Please note price is for Elite TwinLock Hitch supply only, installation is not included.

Compliant with Australian (AS4772-2008) and international (ISO 13031-2012) hydraulic hitch standards.

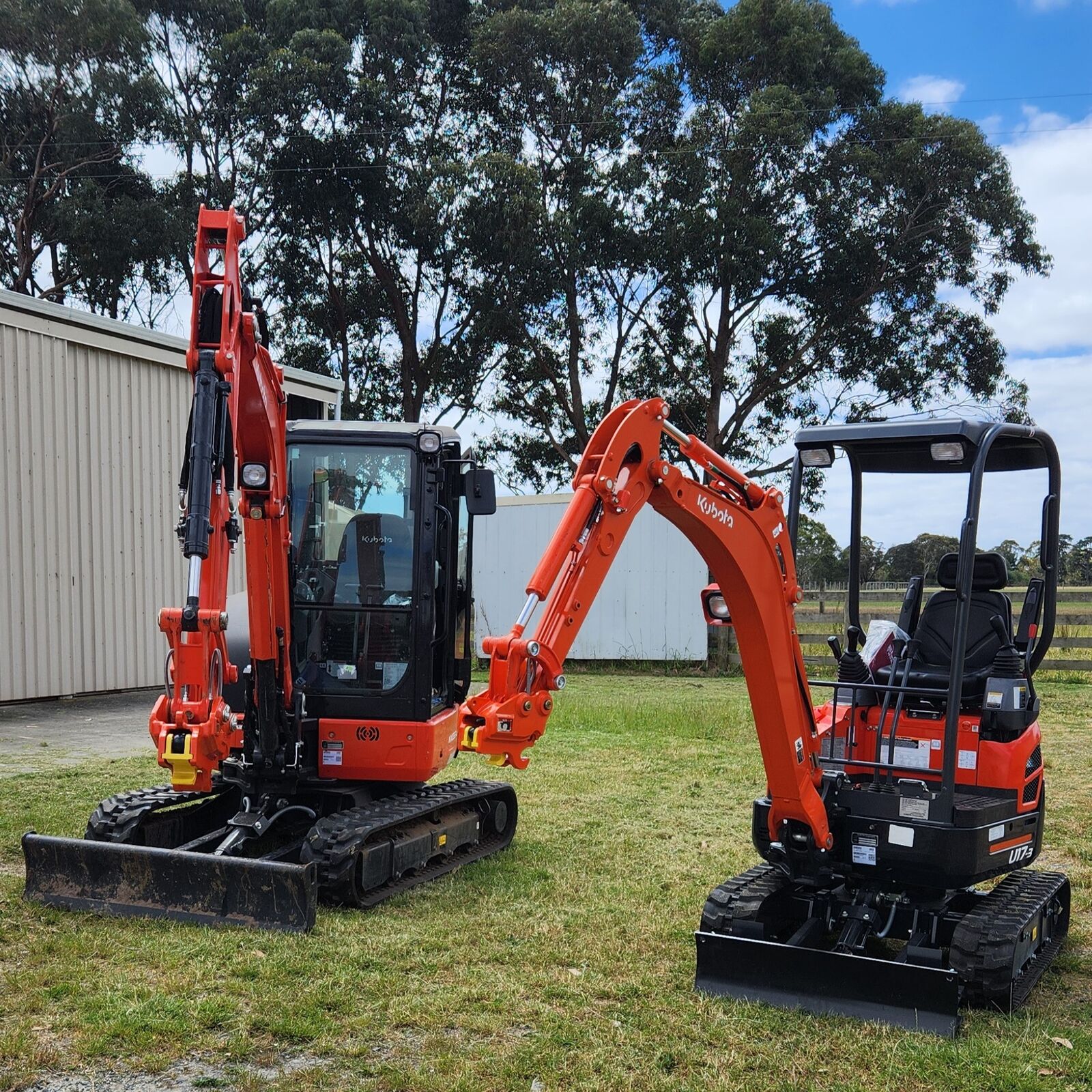

Designed specifically for the Kubota 1.5T - 1.9T range of excavators.
Fully automatic operation no manual safety pin required.
Twin locking hitch with independent locking on both front and rear attachment pins.
Simple construction with three main parts: body, slide, and cylinder.
Fitted with an integral steel plate lifting eye.
OEM coloured to match machine colour.

Specifications

Brand: Elite Attachments
Model: EL16TL-30-KUB
Manufactured: 800 MPa high strength steel plate for robust construction.
Supplied: precision ground greasable pins for enhanced durability.
Integral lifting eye fitted and certified for secure lifting.
Warranty: 12 months from the date of installation.
Optional Hose & Piping Kit:

Hitch can be supplied with a hose & piping kit designed and tested specifically for your machine
Custom Designed - To the exact specifications of your excavator
Quick Fit-up - Existing mount points are used to reduce fit-up times
Durable - Hosing is protected inside the bucket linkage and fitted with HD plastic spiral wrap
OEM Coloured - Painted to match the original Kubota Orange colour

Further Options Avaliable:
