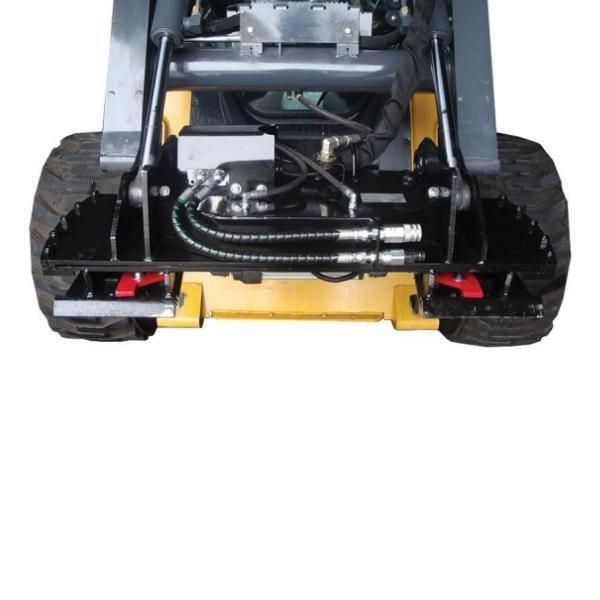

ELECTRIC LOCKING TILTING HITCH - NORM ENGINEERING SUITS SKID STEER & TRACK LOADERS

Norm Engineering - Electric Locking Hitch

The Norm Tilting Hitch is an industry leading attachment.

By replacing the machines standard quick attach frame, the Tilting Hitch allows the operator to have radial control over any attachment that is on the machine.

Available with optional hydraulic locking pins eliminating the need for the operator to ever leave the cabin. This is ideal for attachments stored high in purpose built trailers or operators that simply change attachments frequently.

The Norm Tilting hitch replaces the loaders original fast attach frame and therefore the reduction in breakout force and machine stability is minimal due to the unique compact design.

Specifications:

17 Degrees tilt in both directions
12V Signal is necessary to operate
Fitted with ability to pickup attachments with universal mount
Weight: 225kg
Width: 1240mm
Depth: 260mm
Height: 460mm

Further Options available:

Manual Locking, Hydraulic Locking

Please don't hesitate to contact us if you have any further questions or queries
