Stucchi 1/2" BSP Hydraulic Flat Face Couplings

Details & Specs

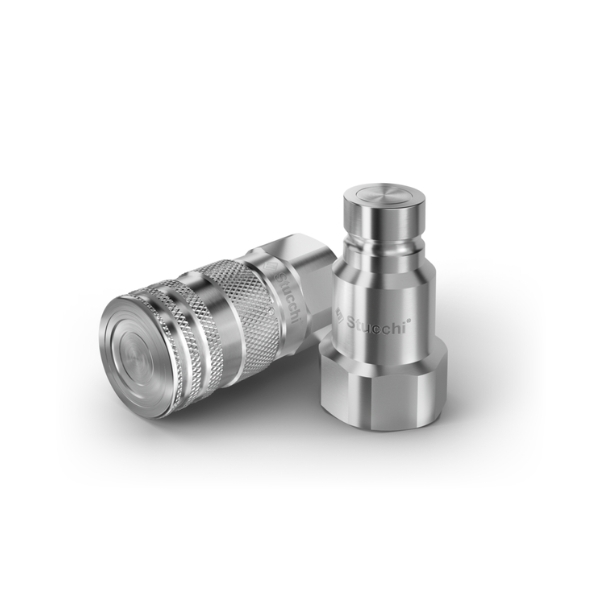

1 x Set of Genuine Stucchi ½" Male & Female Hydraulic Couplings (Made in Italy)

The Stucchi FIRG series of high performance Flat Face couplings are designed for use on auxiliary circuits on excavators, skid steer & track loaders, machinery attachments and all types of construction & agricultural equipment.

These couplings are used by most major OEM brands and compatible with major brands like Parker, Faster, Eaton & Hansen and much more...

Package Includes

1 x M-FIRG12A BSP - ½" Male Flat Face Coupling (½" BSP Female Threaded Connection)

1 x F-FIRG12A BSP - ½" Female Flat Face Coupling (½" BSP Female Threaded Connection)

Specifications:

½" BSP Female Threaded Connection
Flow rate: 24-1000 LPM
Operating Temperature: -20 to 100 Degrees
Operating Pressure: Up to 300 bar
Couplings Conform to ISO 16028

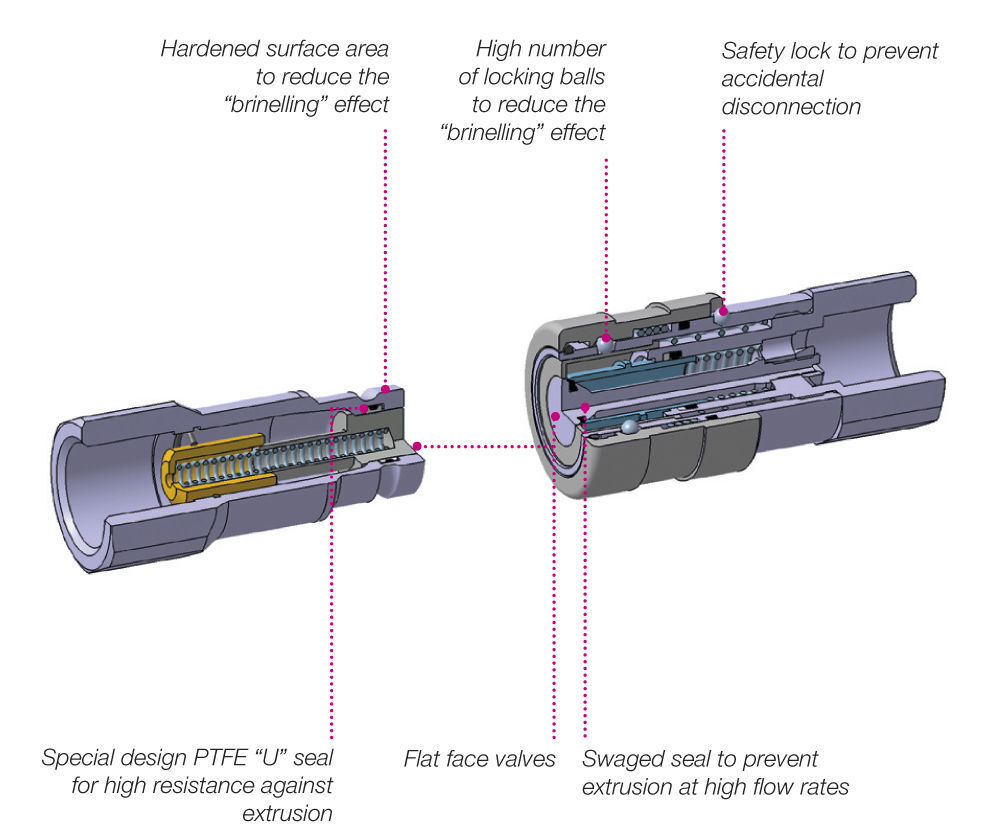

Features:

Flat Face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
Minimal fluid spillage during connection & disconnection
Minimal air intrusion during connection
Locking sleave prevents accidental disconnection and damage

Specifications

SKU	M-FIRG13ABSP-F-FIRG13ABSP
Brand	Stucchi
Shipping Weight	1.0000kg
Shipping Width	0.220m
Shipping Height	0.070m
Shipping Length	0.160m
Shipping Cubic	0.002464000m3
Unit Of Measure	ea
