2 sets of Stucchi 1/2" ISO Poppet Couplings

Details & Specs

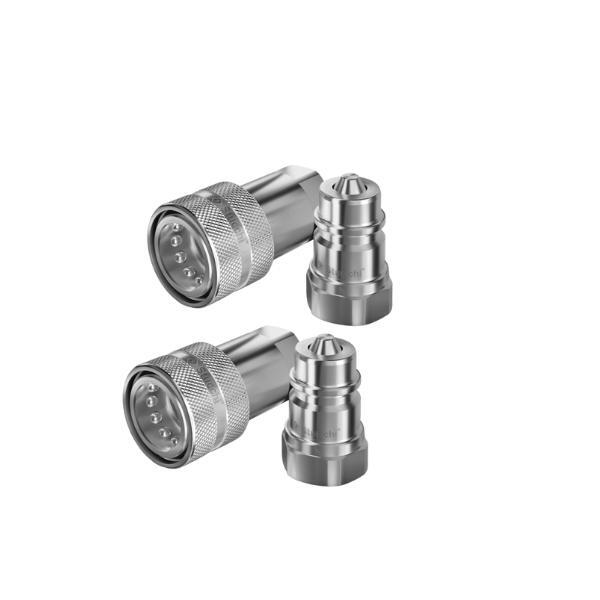

2 x Sets of Genuine Stucchi ½" Male & Female Hydraulic Couplings (Made in Italy)

The Stucchi BIR series of high performance ISO Poppet couplings are designed for use on auxiliary circuits on tractors, skid steer & track loaders, excavators, machinery attachments and all types of agricultural & construction equipment.

These couplings are used by most major OEM brands and compatible with major brands like Parker, Faster, Eaton & Hansen and much more...

Package Includes

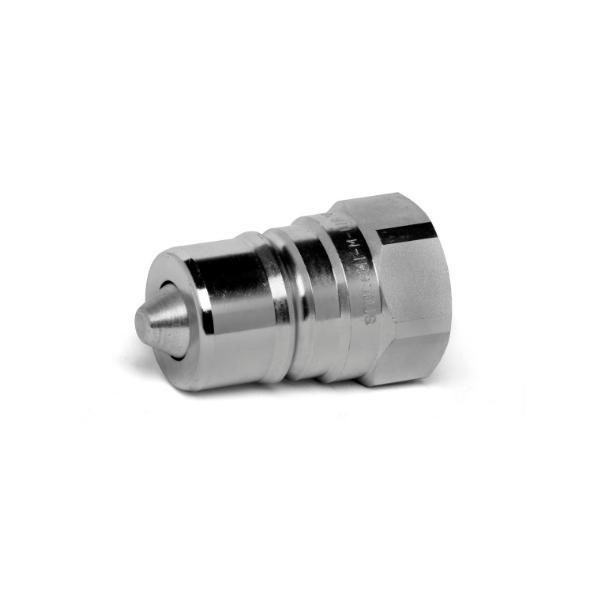

2 x M-BIR12 BSP - ½" Male ISO Poppet Coupling (½" BSP Female Threaded Connection)

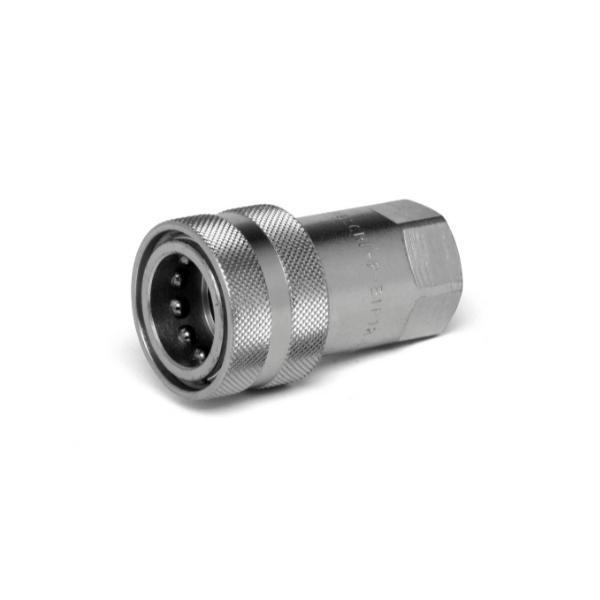

2 x F-BIR12 BSP - ½" Female ISO Poppet Coupling (½" BSP Female Threaded Connection)

Specifications:

½" BSP Female Threaded Connection

Flow rate: 15-80 LPM

Operating Temperature: -20 to 100 Degrees

Operating Pressure: Up to 300 bar

Features:

Zinc Plated, heat treated carbon steel - Nitrile o ring seals with PTFE backup rings

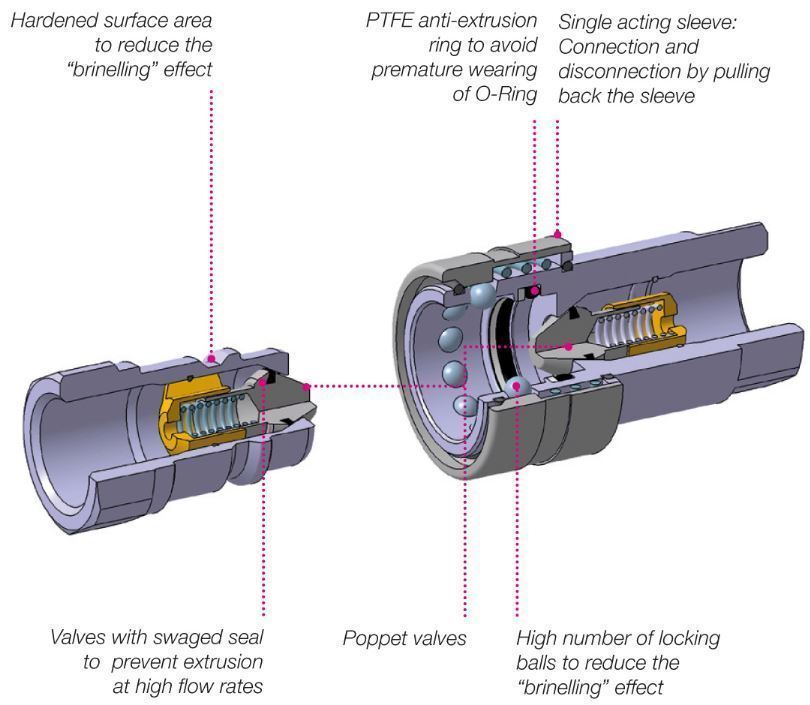

Positive, quick connection ensured by the snap together locking ball system

When connected the male and female halves can rotate, even under pressure, avoiding stress on hoses

Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop

Poppet valve seals have shockproof protective edges

Industry Standard

Couplings Conform to ISO 7241-1 Series A

Please enquire if you have any further questions about your suitability

Please don't hesitate to contact us if you have any further questions or queries

Specifications

SKU	M-BIR12BSP-F-BIR12BSP-2
Brand	Stucchi
Shipping Weight	3.0000kg
Shipping Width	0.160m
Shipping Height	0.070m
Shipping Length	0.220m
Shipping Cubic	0.002464000m3
Unit Of Measure	ea
